Double Girder Rope Hoist

Stronghold’s Double Girder Wire Rope Hoist is designed for high-capacity lifting applications and seamless integration with double girder crane systems. Engineered for European-style compactness and performance, it offers superior lifting height by positioning the hoist between the girders, maximizing vertical space utilization.

With precise load handling, optimized hook travel, and robust cross-travel control, this hoist ensures reliable performance under demanding conditions. Its advanced design reduces stress on crane structures and eliminates the need for bulky counterweights through a balanced trolley system. Built with high-strength structural steel and precision-machined components, it delivers unmatched durability, stability, and lifting efficiency.

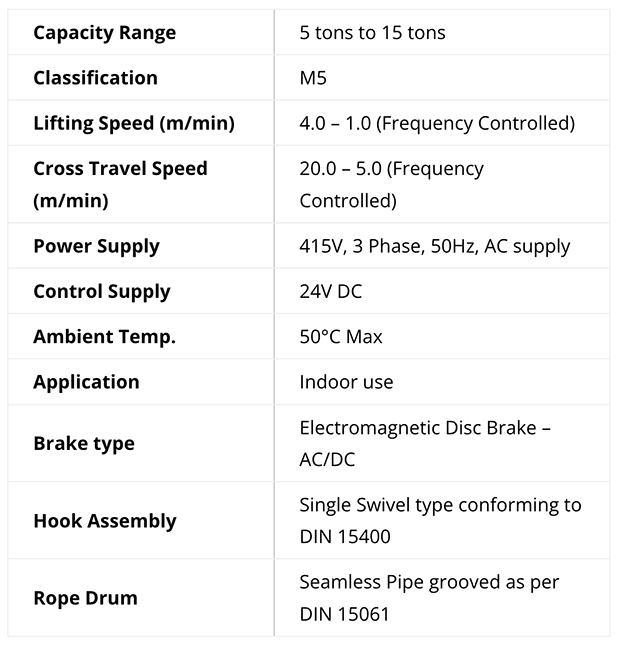

Standard Specifications



Capacity Range 5 tons to 15 tons
Classification M5
Lifting Speed (m/min) 4.0 – 1.0 (Frequency Controlled)
Cross Travel Speed (m/min) 20.0 – 5.0 (Frequency Controlled)
Power Supply 415V, 3 Phase, 50Hz, AC supply
Control Supply 24V DC
Ambient Temp. 50°C Max
Application Indoor use
Brake type Electromagnetic Disc Brake – AC/DC
Hook Assembly Single Swivel type conforming to DIN 15400
Rope Drum Seamless Pipe grooved as per DIN 15061



Send an Inquiry

Engineered Advantages

1. Gearbox

  • 3-Stage helical hardened gears offer smooth, efficient power transmission, with high durability.
  • Reduced noise operation ensures quiet lifting cycles, suitable for indoor and sensitive environments.
  • Oil-lubricated and sealed gearbox reduces maintenance needs and extends operational life.

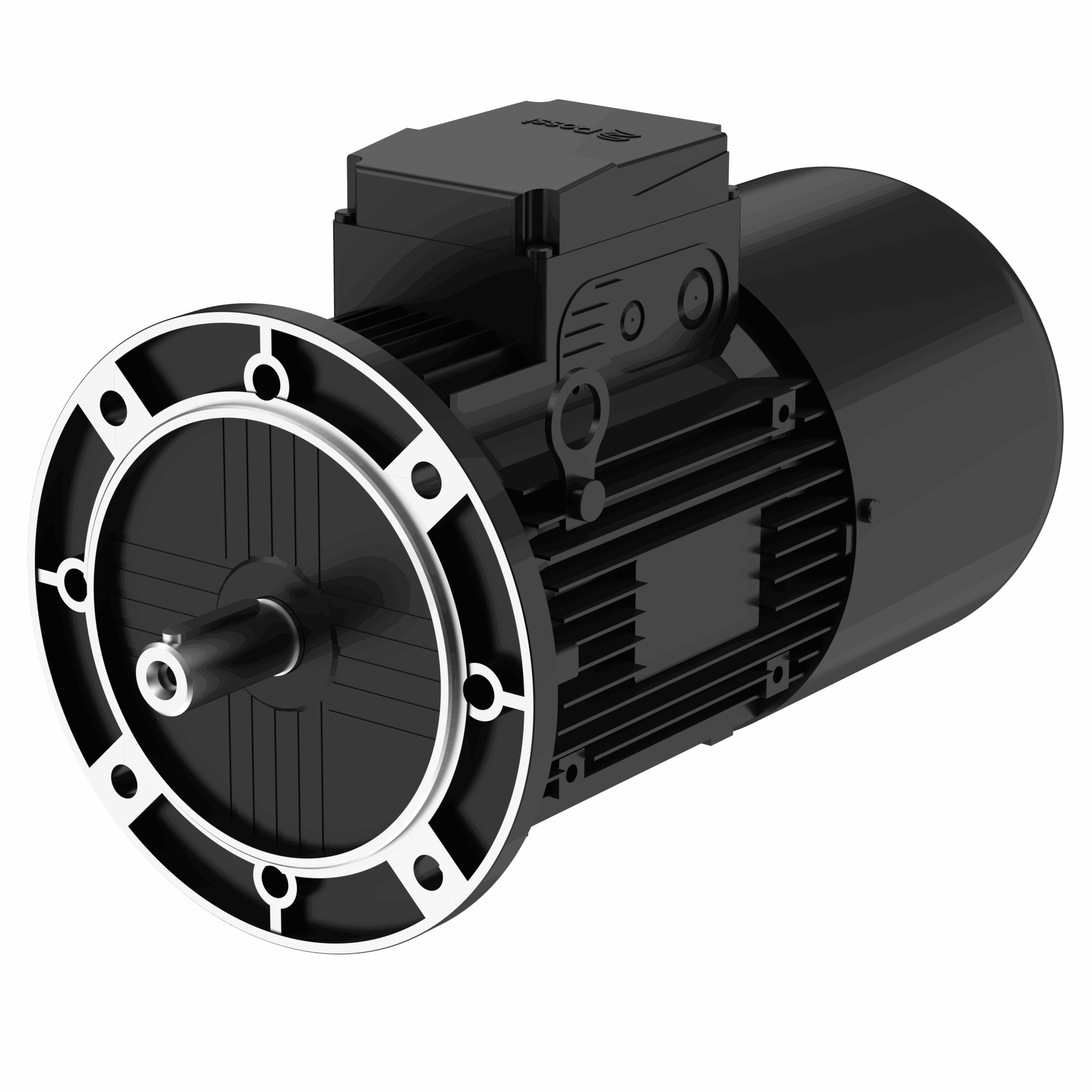

2. Hoisting Motor

  • Specially designed for hoisting, ensuring, optimal torque, duty cycle, and performance under lifting loads.
  • Electromagnetic liner fail-safe brake tested for over a 1 million cycles, guaranteeing reliable and safe stopping.
  • Equipped with thermal and brake wear sensors to provide advanced safety and prevent overheating or brake failure.

3. Rope Drum

  • Specially designed for easy assembly and lightweight construction, simplifying installation and maintenance.
  • Incorporates a roller-based design that reduces wear on the drum surface, significantly increasing its operational lifespan.

4. Rope Guide

  • Specially designed for easy assembly and lightweight construction, simplifying installation and maintenance.
  • Incorporates a roller-based design that reduces wear on the drum surface, significantly increasing its operational lifespan.

5. Hook Assembly

  • Single shank swivel hook allows smooth 360° rotation, improving load handling flexibility.
  • Heavy-duty safety latch ensures secure lifting and prevents accidental unhooking.
  • High-capacity roller thrust bearing enables smooth rotation under full load with minimal friction.

6. Wire rope

  • 6×36, steel core construction offers excellent strength, flexibility, and corrosion resistance.
  • Made with 2160-grade high tensile steel, ensuring superior load-bearing capacity and durability.
  • Flexible design minimise wear on the rope drum, extending both rope and drum life during frequent lifting operations.

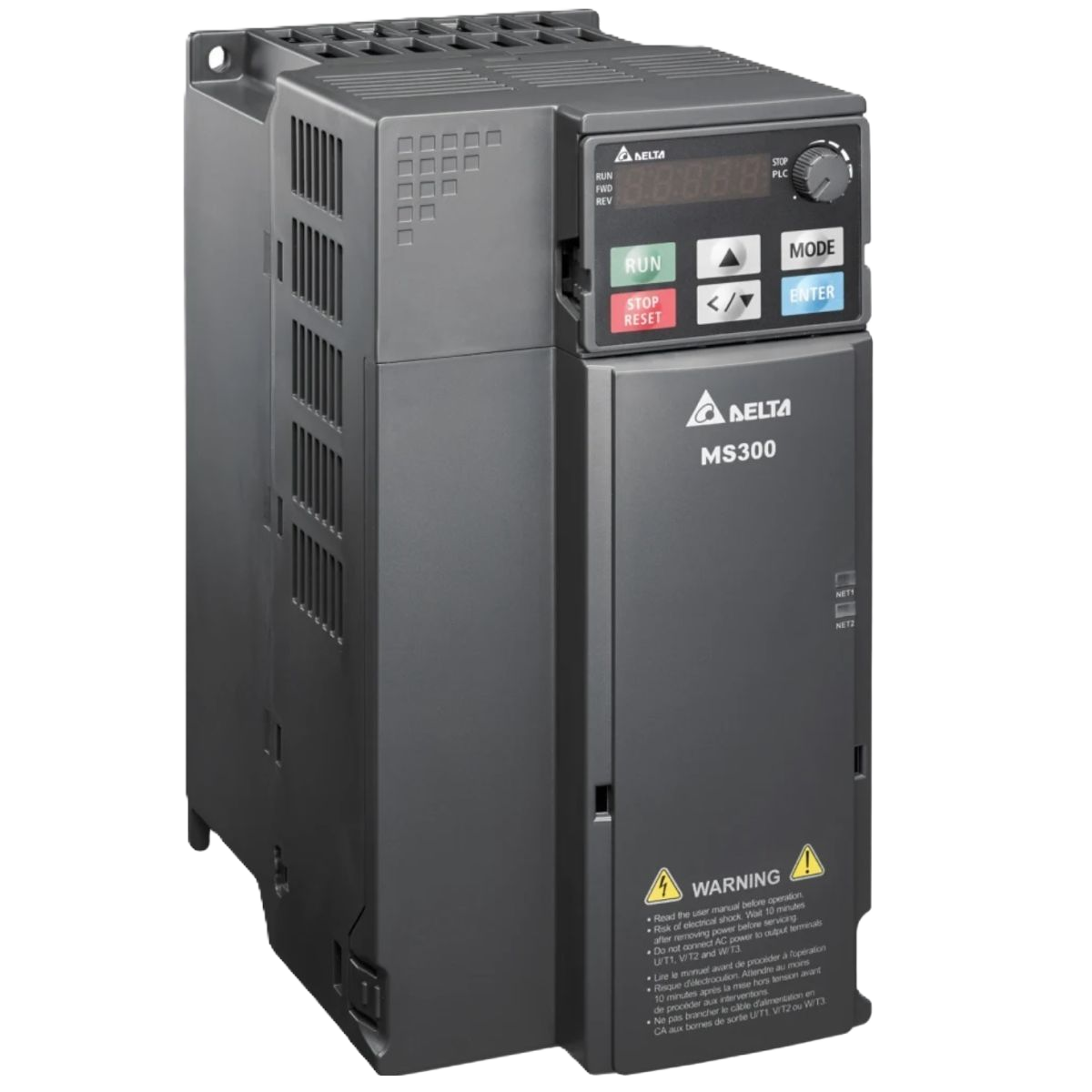

7. VFD

  • Custom acceleration and breaking profiles ensure smooth and controlled lifting and lowering.
  • Minimizes vibration, jerks, and mechanical impacts, protecting both load and equipment.
  • Compact space-saving design integrates easily within control panels.
  • Built-in electrical overload protection enhances operational safety and equipment longevity.

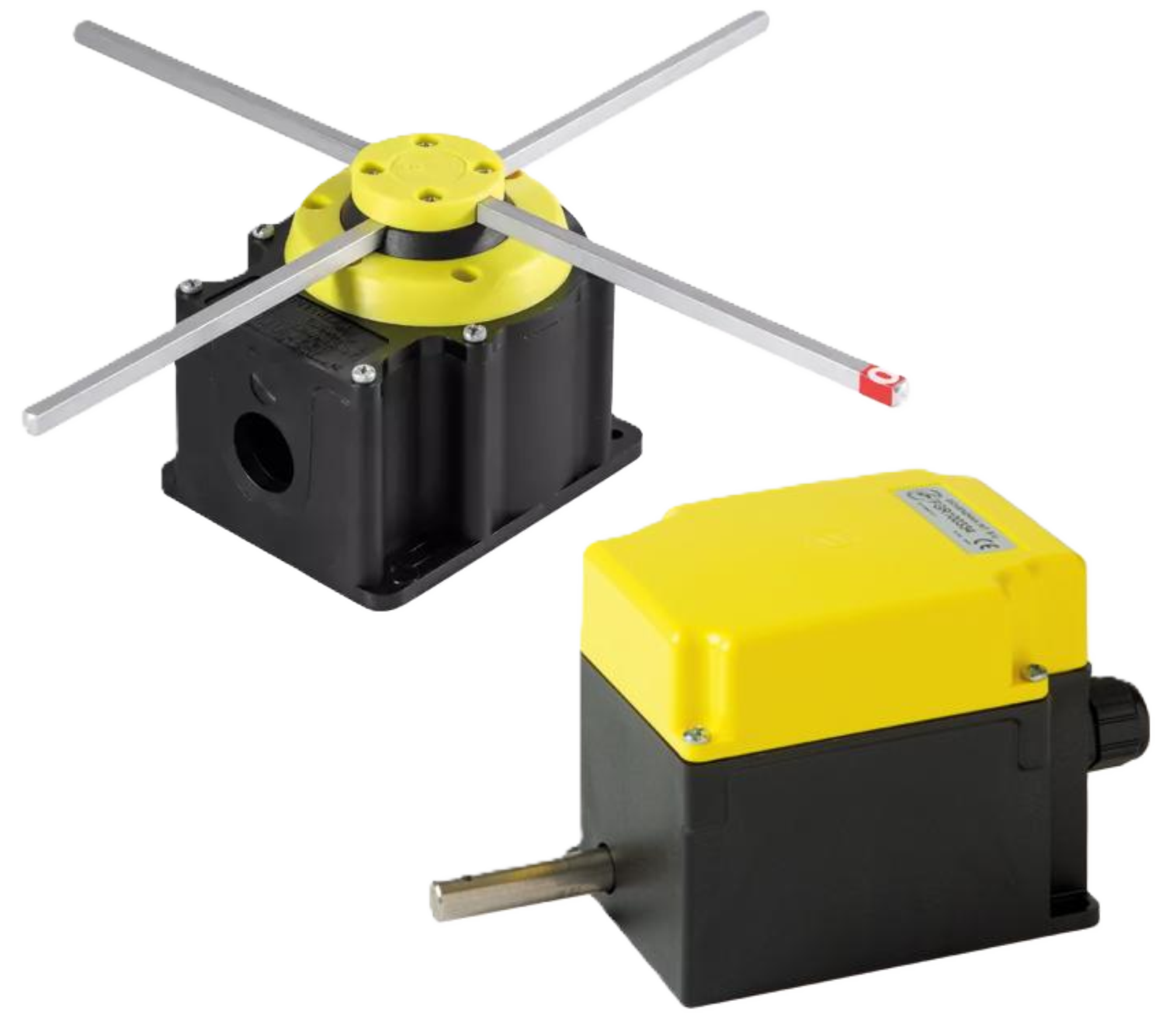

8. Limit Switches

  • High-quality, reliable components design for industrial-duty performance.
  • Hoisting limit switch prevents over-lifting or over-lowering safeguarding rope and motor.
  • Dual-stage CT limit switch offers enhanced safety and allows better coverage near girder ends.

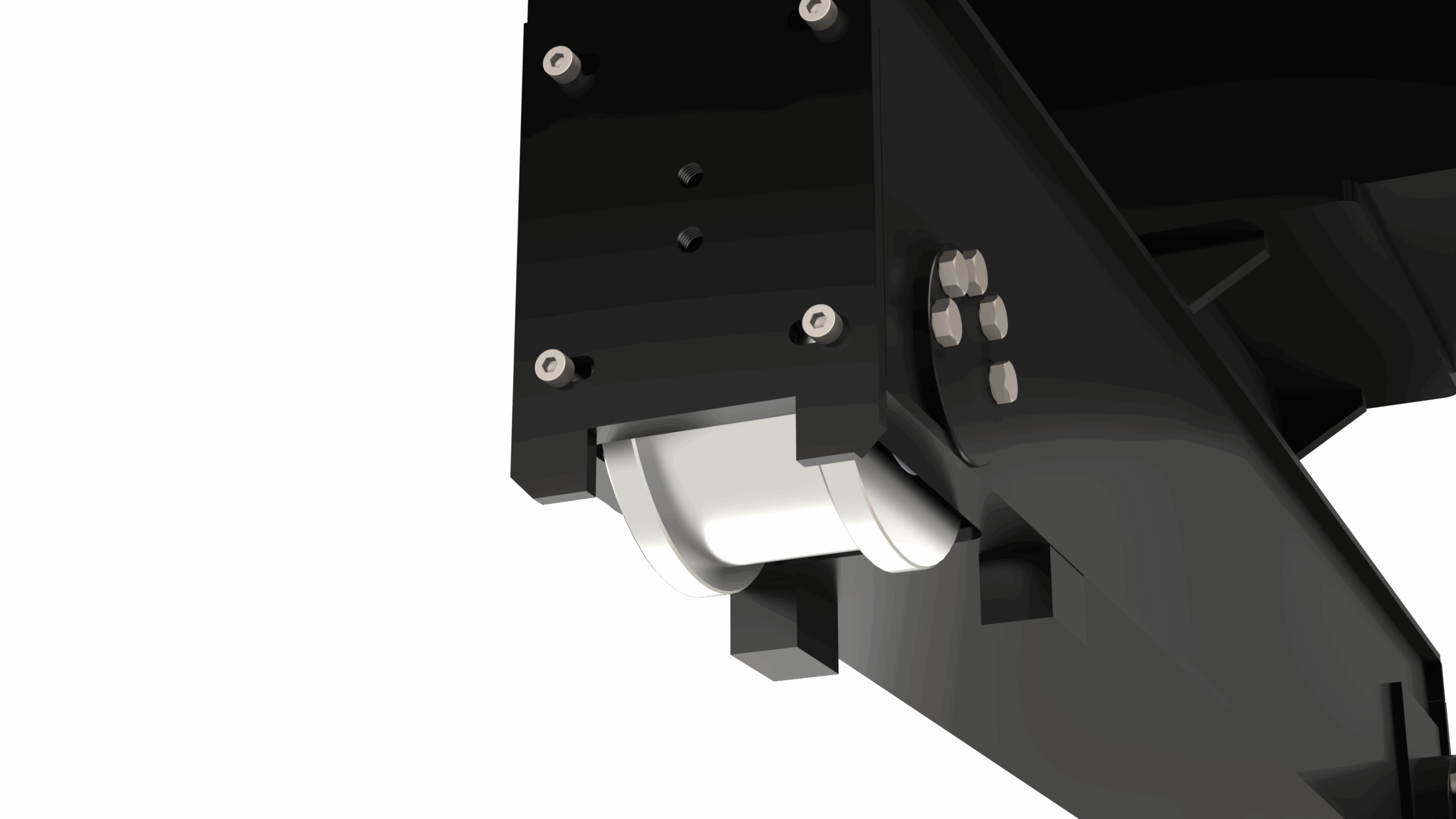

9. Travel Wheels

  • Single flange wheels with high-precision machining, hardened and blackodized for superior wear resistance.
  • Premium bearings ensure long-lasting, smooth, and quiet travel.
  • Designed for easy removal and maintenance, reducing downtime during service.

10. Overload Protection

  • Mechanical overload limiter ensures safe lifting by preventing operation beyond rated capacity.
  • Precision-tested spring mechanism is carefully calibrated for consistent and reliable performance.

Intelligent Safety Solutions

At stronghold, safety is not just a commitment; it’s our foundation. Our hoists integrate state-of-the-art safety features, guaranteeing reliable, secure, and high-performance operation across diverse industrial applications. Key safety features include:

Hinged End Carriages

  • Reduces stress from uneven rails

Overload Limit Switch

  • Prevents excessive load handling

Motor Overload Protection

  • Protects against overheating.

Hoisting Limit Switch

  • Prevents over travel for precise lifting.

Cross travel limit switch

  • Controls movement accuracy.

Motor brake wear sensor

  • Disables lifting if brake wear is excessive.

Hoist

At Stronghold, we specialize in delivering robust, reliable, and performance-driven hoisting solutions tailored for industrial-grade applications. Our hoists are designed to meet the highest standards of safety, durability, and efficiency—built to perform in demanding environments where uptime and precision matter most.

Wire Rope Hoist

In-house manufactured hoists built for heavy-duty lifting, long service life, and high operational efficiency.

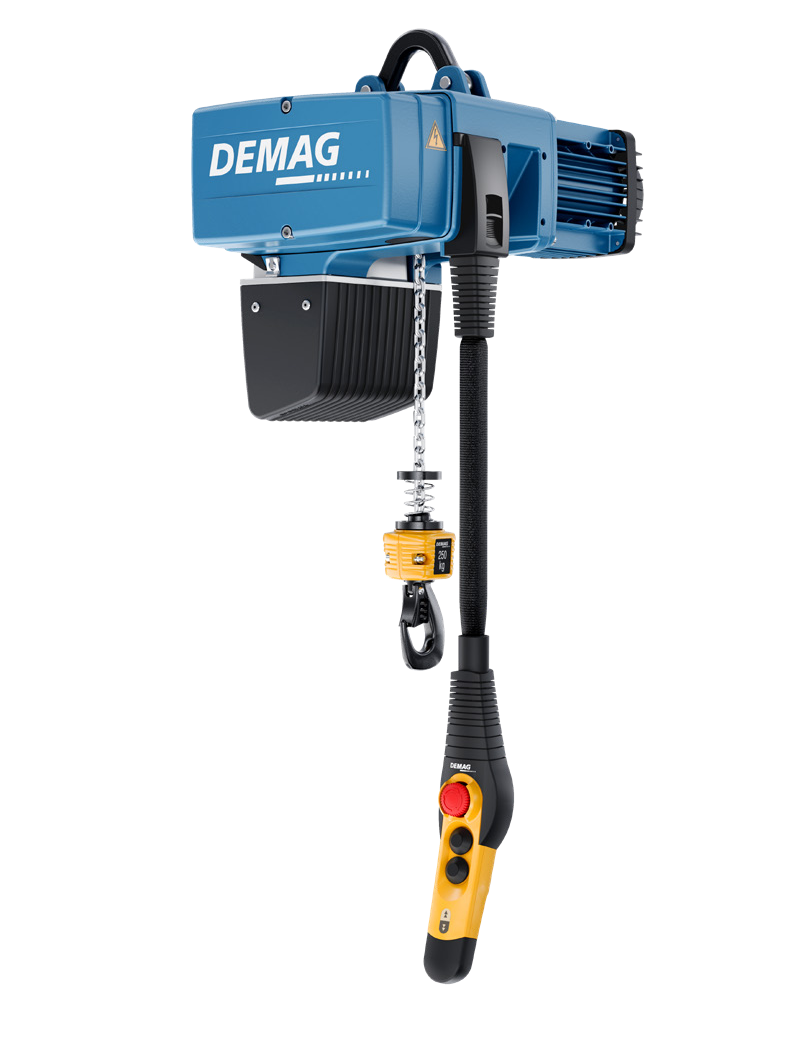

Chain Hoist
