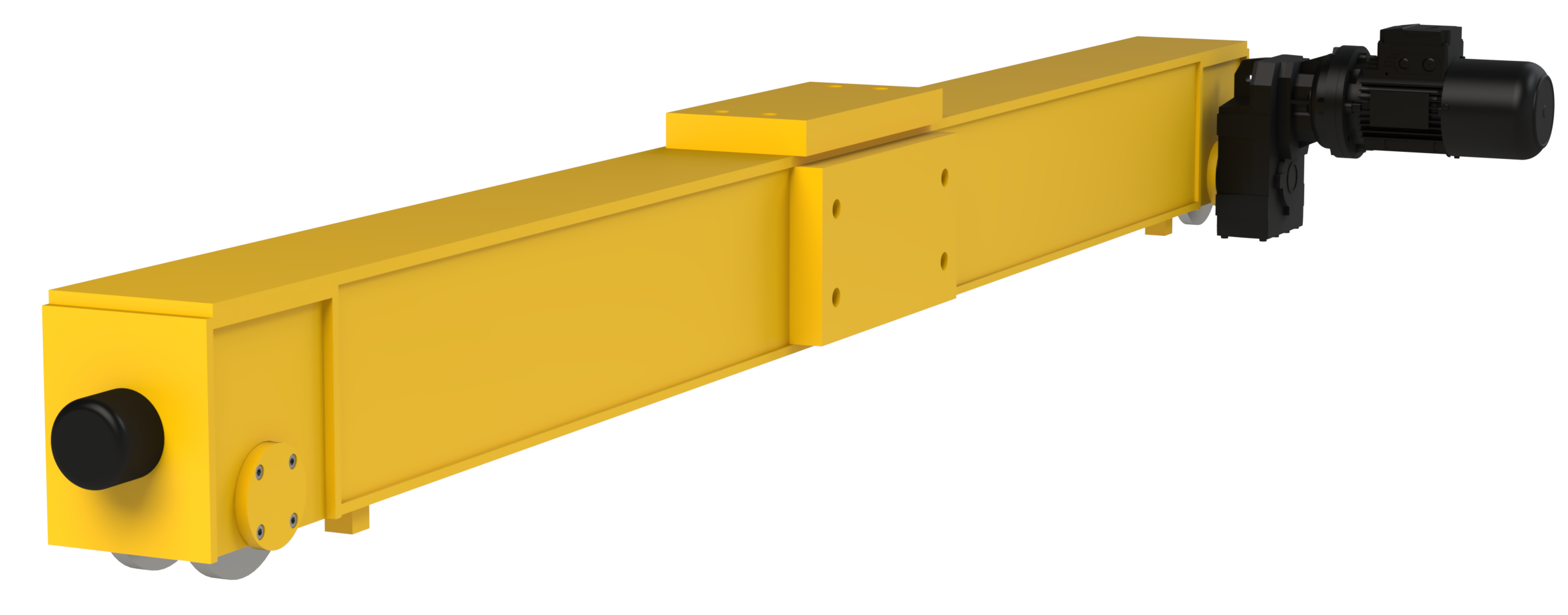

End Carriages

End carriages are structural assemblies mounted at the ends of a crane bridge to house the drive mechanism and support wheel blocks. They are crucial for balanced crane travel and smooth movement along the runway beams.

Standard Specifications



Load Capacity Upto 15 tons
Wheel Diameters 125, 160, 200, 250
Type of Control VFD – 3 Phase 415 V 50 hz
Travel Speed 5.0 – 40.0 m/min
Mounting type top bolted, side bolted

Key Features



  • Precision-machined for accurate wheel alignment

  • Integrated travel drive units

  • Compatible with box and I-beam girders

  • Designed for low maintenance and long service life

  • Available in customizable wheelbase dimensions

Wheel Block Assembly

Compact, robust wheel systems built for easy integration and high load-bearing efficiency.

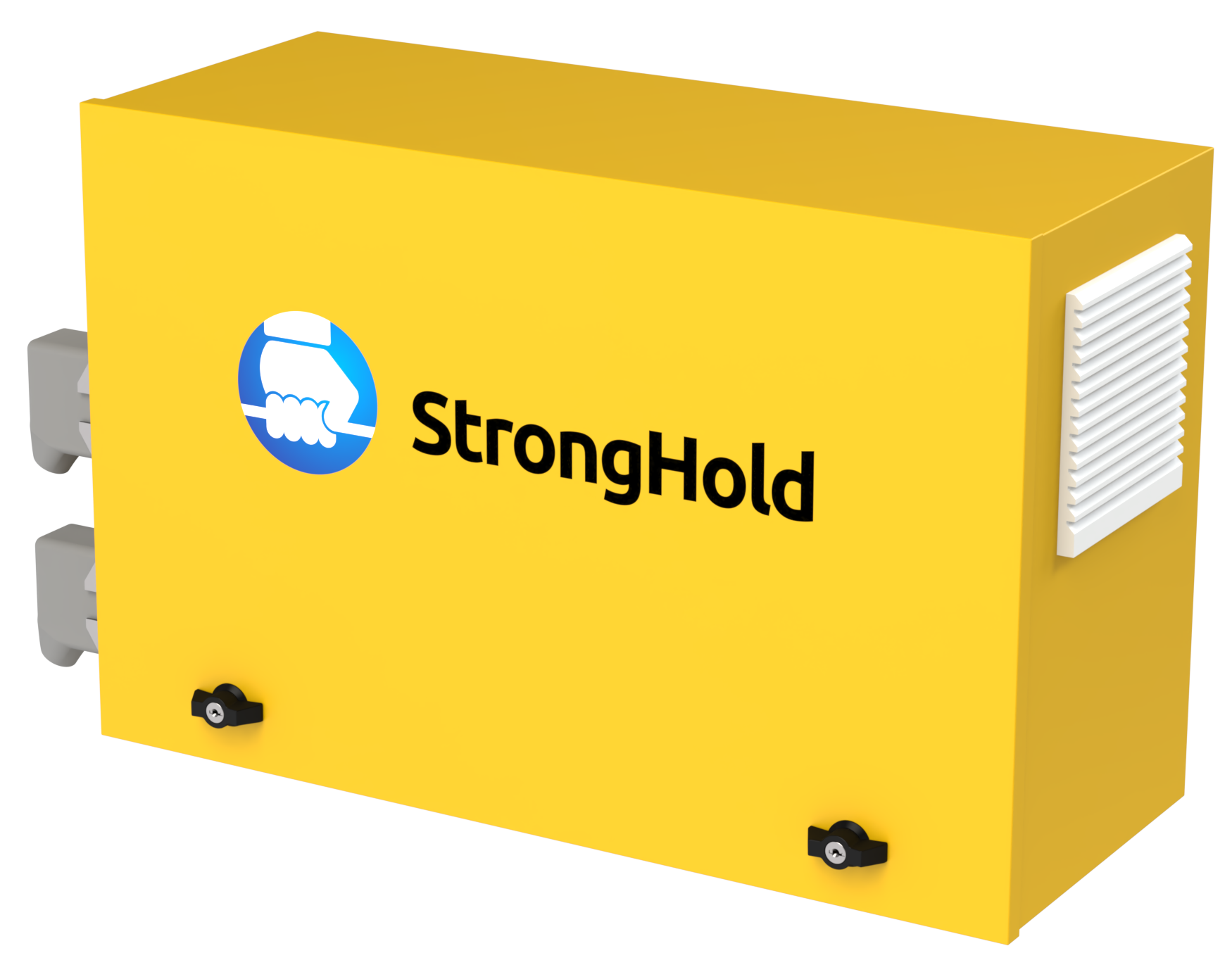

LT Panels

Reliable long-travel control panels engineered for safety, precision, and operational ease.

End Carriages

High-strength fabricated end carriages ensuring stable travel and structural integrity of crane bridges.
